Minimal Sliding insulated system SUPREME S650 PHOS

Minimal Sliding insulated system SUPREME S650 PHOS

Description

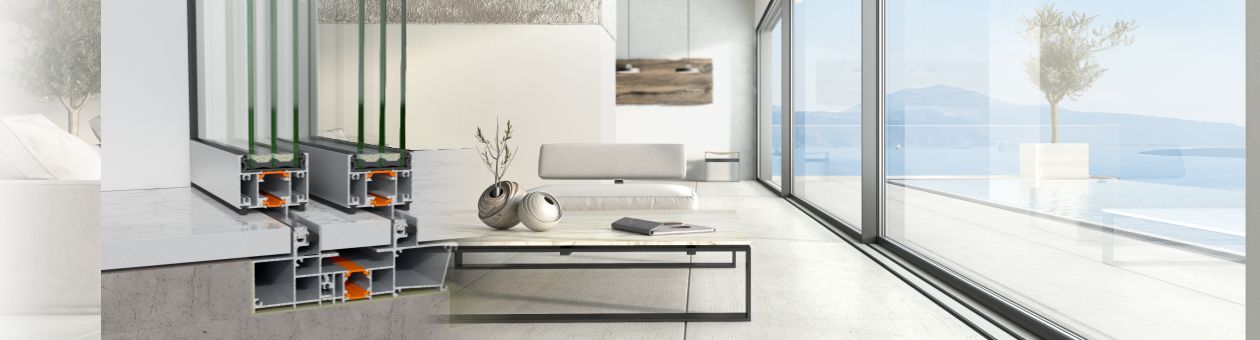

The thermally insulated sliding system SUPREME S650 PHOS is the ideal solution for projects requiring wide spans with minimal aluminium sight lines. Massive yet elegant glazing surfaces are achieved while maintaining high functionality, performances and minimal architectural design.

Advantages

  • Enhanced natural light thanks to the system's minimal design and the wide glazing surfaces
  • High energy savings thanks to exceptional energy efficiency
  • High-security level
  • Exceptional sound insulation
  • Maximum ease of use and high functionality
  • Available three alternative solutions for the on-floor installation, in-floor installation or totally concealed in-floor installation covered with the floor finish (version SUPREME S650 PHOS Eclipse)
  • Alternative version for automated sliding sashes (SUPREME S650 e-ΜΟΤΙΟΝ)
  • Ease of access according to specifications for people with special needs and children
  • Wide variety of typologies
  • Ideal for wide spans
  • Exceptional quality with certified performances
  • Increased static loads and functionality in case of severe weather conditions

Certificates

  • Cradle to Cradle Certified® is the global standard for products that are safe, circular and responsibly made.
  • Aluminum TUV Austria OK Recycled

Generic

WINDOW TYPE
Sliding
THERMAL INSULATION
Yes
EXTERIOR SHAPE
Flat

Technical Characteristics

SASH DEPTH
62 mm
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT
Concealed profiles
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (INTERLOCKING PROFILE)
25 mm
GLAZING TYPE
Double - Triple
MAXIMUM GLAZING THICKNESS
up to 46 mm
MECHANISM
ALUMIL
SEALING METHOD
Perimetrical with tri-fin brushes
MINIMUM THRESHOLD HEIGHT
35 mm
TYPE OF THERMAL INSULATION
Polyamides, Thermoplastic

Performance

UW
1,1 W/m²K
WATER TIGHTNESS
CLASS 9A
AIR PERMEABILITY
CLASS 4
WIND LOAD RESISTANCE
C5
SOUND REDUCTION
46dB
BURGLAR RESISTANCE
RC2

Characteristics

TYPES OF TYPOLOGY
Horizontal sliding sashes, Multiple tracks, Meeting stile, Sliding into the wall cavity, Corner typologies, Combinations with fixed lights, Combinations with fly-screen
SASH WEIGHT
up to 1000 Kg
TYPOLOGIES

All available typologies

01
Double horizontal sliding sash
02
Single sliding sash with fixed light
03
Four horizontal sliding sashes
04
Double horizontal sliding sash meeting stile with fixed lights
05
Corner typology window, with horizontal parallel sliding sashes
06
Corner typology with two sliding sashes and fixed lights
07
Triple horizontal sliding sash
08
Four horizontal sliding sashes
FAQs

FAQs about Windows & Doors

Absolutely! Sliding aluminium systems can be equipped with various types of automation mechanisms, allowing for electric opening and closing of the sliding door as well as locking. To find the right solution based on your specific needs, we recommend consulting with a specialist fabricator for more information. They can provide you with detailed guidance and help you choose the automation system that best suits your requirements.

Aluminium sliding systems offer a wide range of aesthetic options to fit your personal style and functional needs. From different typologies, colours, and treatments such as sublimation (offering the aesthetics of wood or other materials such as cement or copper in aluminium profiles) to special construction possibilities (on-floor, in-floor or totally concealed in-floor installation, covered with the floor finish) and minimal design options, the combinations are endless. You can choose options that offer functional upgrades, such as easy access or more natural lighting for a brighter and more comfortable space.

Aluminium systems are known for their durability and low-maintenance requirements. To keep your doors and windows looking their best, you should regularly clean them with a soft cloth and a mild detergent. Avoid using abrasive cleaners or solvents that can damage the finish. You should also lubricate the moving parts of your frames with a silicone-based lubricant to prevent wear and tear.

Aluminium windows are known for their strength and durability, which makes them a popular choice for homeowners concerned about security. While no system can guarantee absolute security against burglary, aluminium windows can offer increased protection compared to other materials. Anti-burglary certificates can provide an indication of the level of protection a frame can offer. It is recommended that you review all available anti-burglary certificates and discuss with your fabricator to determine the most appropriate system to meet your specific needs.
