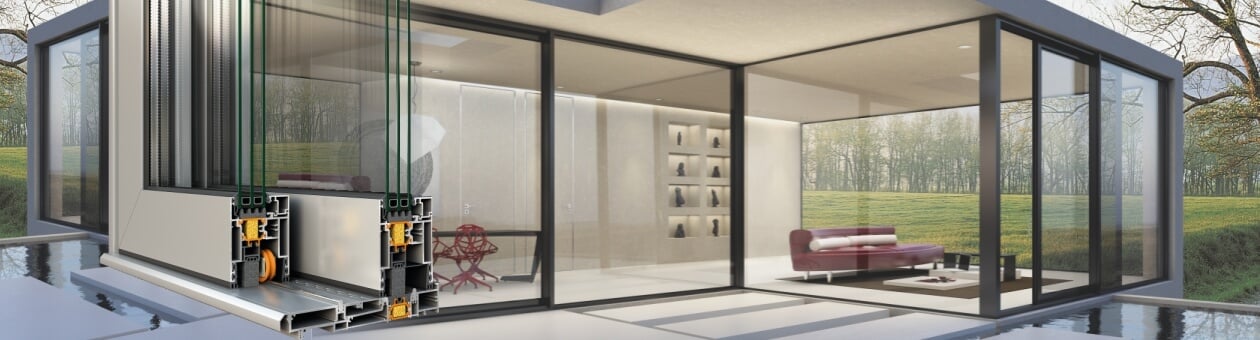

Lift & slide insulated system SUPREME S700

Description

The lift & slide system SUPREME S700 represents the new generation of ALUMIL’s high-end systems. It is an excellent solution for projects with demanding requirements, meeting the trend of “transparent” architecture through extensive glass surfaces, with high thermal insulation, safety and modern design. Its minimal design and its various innovative characteristics, make it the ideal option for projects requiring wide spans for enhanced daylight, outstanding performance and maximum ease of use.

Αsk for information

Get a quote

Advantages

Maximum ease of use and high functionality, optionally combined with automatic motion
Enhanced natural light thanks to the wide glazing surfaces
High energy savings thanks to the exceptional energy efficency
High security level
Exceptional sound insulation
Ease of access
Wide variety of typologies and solutions
Exceptional quality with certified performances
Increased static loads and functionality in case of severe weather conditions
Available solution for totally concealed bottom frame installation covered with the floor finish (version SUPREME S700 Eclipse)

Certificates

Generic

WINDOW TYPE

Lift & Sliding

THERMAL INSULATION

Yes

EXTERIOR SHAPE

Flat

Technical Characteristics

SASH DEPTH

70 mm

MINIMUM VISIBLE ALUMINIUM FACE HEIGHT

91 mm

MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (INTERLOCKING PROFILE)

47 mm

GLAZING TYPE

Double - Triple

MAXIMUM GLAZING THICKNESS

from 22 to 50 mm

MECHANISM

Lift & slide mechanism

SEALING METHOD

Perimetrical with EPDM gaskets & tri-fin brushes

MINIMUM THRESHOLD HEIGHT

24 mm

TYPE OF THERMAL INSULATION

Polyamides, ALUMIL Energy bar, Insulation foam,Thermoplastic

Performance

Uw=1,1W/m²K

WATER TIGHTNESS

CLASS E900

AIR PERMEABILITY

CLASS 4

WIND LOAD RESISTANCE

C4/B4

SOUND REDUCTION

41 dB

BURGLAR RESISTANCE

RC2

Characteristics

TYPES OF TYPOLOGY

Horizontal sliding sashes, Multiple tracks, Meeting stile, Sliding into the wall cavity, Corner typologies, Combinations with flyscreen and shutter, Combinations with fixed lights

SASH WEIGHT

up to 600 Kg

TYPOLOGIES

All available typologies
